New Products
Linden is integrating new design and component technology into new products, offering significant improvements and value for the industry
With more than 50 years of experience designing and manufacturing log handling equipment, Linden understands what it takes to keep mills running efficiently. Our newest product designs build on decades of proven performance, incorporating modern engineering, electric drive technology, and improved serviceability to deliver higher reliability, lower maintenance, and longer equipment life.
Built to Perform
Linden has a number of Step Feeder models to suit different applications and performance requirements
1
Let us help you identify what singulation machine will best suit your needs and budget
2

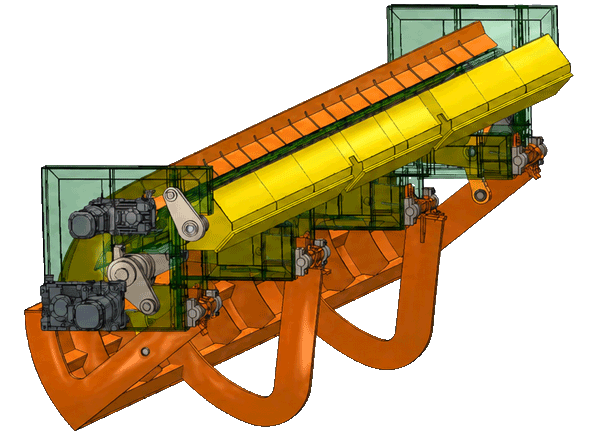

Electric Quadrant Feeder
Designed for Maximum Throughput and Reduced Maintenance
The Electric Quadrant Feeder replaces hydraulic drives with efficient electric bell-crank drives while maintaining the proven log handling performance of Linden’s traditional Quadrant Feeders. Heavy-duty construction, simplified maintenance, and reliable singulation make it ideal for modern high-capacity mills.
Best APPLICATIONS
High-production sawmills
Stem feeding systems
Primary breakdown lines
Mills upgrading from hydraulic quadrant feeders
Key Benefits:
- Double-acting electric drive
- Eliminates hydraulic power units
- Reliable log singulation using dual quadrant arms
- Heavy-duty one-piece curved face plates
- Compact footprint for easier installation
- Lower operating and maintenance costs
FEATURES:
- Balanced electric bell-crank drive
- One-piece 5/8″ curved face plates
- Stop-N-Load electric drive
- Heavy-duty construction
- Compact transport-friendly design

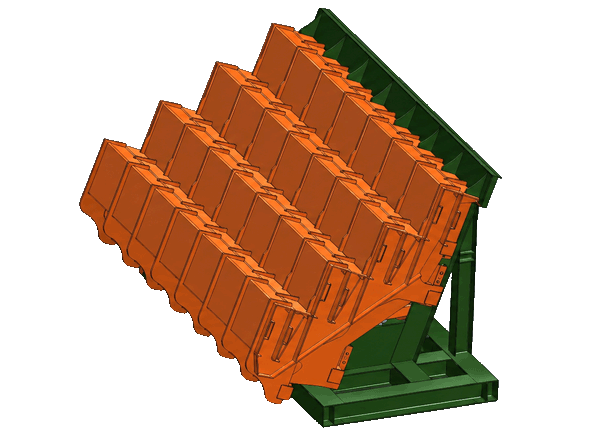

Large Log Step Feeder
Redesigned for Longer Service Life.
The redesigned Large Log Step Feeder incorporates new structural improvements, modern runner wheel technology, and simplified maintenance features that extend equipment life and improve reliability. Compatible as a retrofit for existing step and wave feeders, it provides an easy upgrade path for mills seeking higher performance and lower operating costs.
Best Applications:
- High-production sawmills
- Large log processing lines
- Wave feeder replacements
- Retrofit projects
Key Benefits:
- Retrofits most existing step and wave feeders
- Higher structural strength
- Improved resistance to log impacts
- Reduced maintenance requirements
- Cycle rates up to 70 CPM
- Compact transport profile
Features
- Dual cam runner wheel system
- Reinforced profile plates
- Improved debris management
- Deeper step construction
- Self-straightening step geometry
- Integrated lifting points

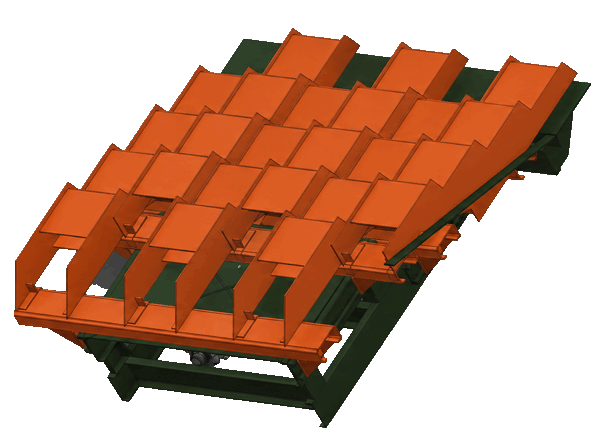

Small Log Step Feeder
Compact Design. Reliable Performance.
Ideal for lathe chargers and small log mills, the direct-drive design reduces equipment cost while maintaining dependable operation. Bolt-in wear components and electric drive technology simplify ownership and reduce maintenance requirements.
Best Applications:
- Small log mills
- Lathe charger systems
- Veneer operations
- Hydraulic feeder replacements
Key Benefits:
- Electric alternative to hydraulic feeders
- Approximately one-half to one-third the cost of a large log step feeder
- Handles logs up to 16 ft long and 2,200 lb
- Bolt-in replaceable moving sections
- Superior runner wheel design
- Modular construction for easier maintenance
Specifications:
- Dual cam runner wheel system
Direct dual-output gearmotor drive
Eliminates torque tube design
Modular bolted construction
Bolt-in wear sections
Dual-acting operation
Electric drive system
At a Glance: Model Comparison
Single-Acting
Log Length
6’–20’
Diameter Range
Up to ~40”
Actuation
Hydraulic
Self-Cleaning
No
Best For
Simplicity, easy integration
Double-Acting
Log Length
8’–24’
Diameter Range
3”–36”
Actuation
Electric
Self-Cleaning
Some Models
Best For
High throughput
Self-Cleaning
Log Length
8’–24’
Diameter Range
3”–36”
Actuation
Electric
Self-Cleaning
Yes (Enhanced)
Best For
High cycle rate, uptime critical
